Description

Peter Meier BASE CABINET HANGERS are the epitome of utility and quality. Designed for both commercial projects and home use, these hangers ensure your cabinets are securely mounted and trouble-free. Whether you’re fitting out public spaces, businesses, or personal kitchens and garages the quality of these cabinet hangers and cabinet brackets ensure a seamless installation.
  • 10mm Dowel mount.
  • Designed for floating base cabinets such as bathroom vanities, entertainment centers and kitchen cabinets.
  • Available with Pozi drive or Hex drive adjustment screw.
  • Anti-drop wall plates required (sold separately).
  • 19mm In-out adjustment.
  • 22mm Up-down adjustment
  • Sold individually.
  • 528 lbs. weight capacity per pair.
  • Optional cover caps are available.

Required Accessories

Optional Accessories

Specifications

Manufacturer:
Peter Meier Inc.
Manufacturer Location:
China
Color/Finish:
steel
Material:
steel
Type:
cabinet hanging bracket
Width:
2-3/8"
Height:
3-1/8"
California Residents:
WARNING: This product can expose you to chemicals including lead and/or wood dust, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Additional:
  • 528 lbs. weight capacity per pair. The load rating determined by the following factors:
  • Dimension and material of the cabinet. (L 47” H 24” D 23”)
  • Position of the hanger to the top panel.
  • The position and thickness of the back panel and depth of the groove.
  • Dynamic Stress. (Motion of drawers or doors under action and force).
  • We recommend a complete cabinet to be tested to industry testing standards.

Installation / Specification Documents

Peter Meier Hanging Systems Brochure Mounting Positions Installation Instructions

Return Policy

If an item is returnable (See restocking list), you must first call or use form below to request a return goods authorization (RGA) prior to returning any items purchased through us.

We will not accept any returns without an RGA. All items must be returned in "Re-Saleable Condition", in original packaging with all parts included. Customer is responsible for shipping charges.

Our restocking policies vary, depending on manufacturer and item.

Click here for our restocking fee schedule. Please call or email us with any other questions you may have on returns.

Request a Return Authorization

Shop the series

Peter Meier Camar Cabinet Hanging Brackets

View Product Collection
Peter Meier Camar 807 Base Cabinet Hanging Brackets, Dowel Mount

Peter Meier Camar 807 Base Cabinet Hanging Brackets, Dowel Mount

View Product
Peter Meier Camar Cover Cap for 807 Hanging Bracket (White)

Peter Meier Camar Cover Cap for 807 Hanging Bracket (White)

View Product
Peter Meier Camar 875-Z1 93-1/2" (2375mm) Steel Hanging Rail, 10/Pack

Peter Meier Camar 875-Z1 93-1/2" (2375mm) Steel Hanging Rail, 10/Pack

View Product

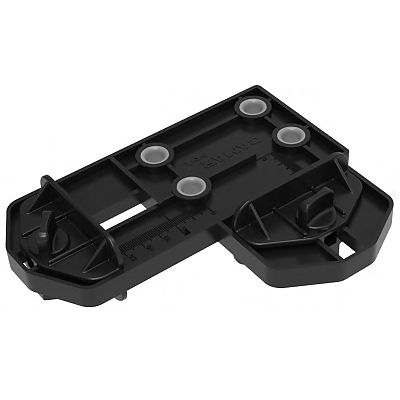

Peter Meier Camar Drilling Template for 807 Hanging Brackets
