Description

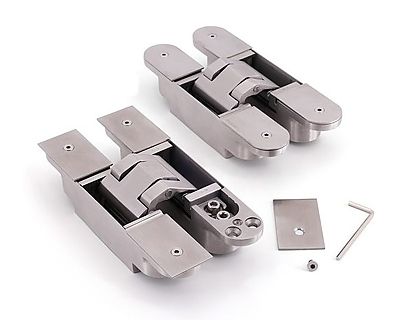

Sugatsune 3-Way Adjustable Stainless Steel Concealed Hinge features 3 Way adjustment function that allows vertical, horizontal, and depth adjustment after hinge installed. Features symmetrical leaves and lift-off feature.

  • Hinge leaves separate for easy installation and feature a temporary hold function making it easier to hang doors.
  • Easy installation with LIFT-OFF FEATURE: hinge can be split into two parts.
  • Supplied with stainless steel flat head screws.
  • Cover hides all screw heads for clean appearance.
  • 304 Stainless Steel ensures excellent corrosion and weather resistance and will not rust.
  • Resists moisture, humidity, rain, and other environmental factors.
  • Optional square shaped covers are available.
  • Max. Door Weight: 176lbs.(80kg) / pair;  220lbs.(100kg) / 3 hinges.
  • Minimum Door Thickness: 1-7/16" (36mm)
  • Max. Door Size: 96" (2438mm)H x 36" (915mm)W

Optional Accessories

Specifications

Manufacturer:
Sugatsune
Manufacturer Location:
Japan
Color/Finish:
stainless steel/satin
Material:
304 stainless steel
Style:
concealed hinges
Type:
concealed hinge
Warranty:
Limited lifetime warranty. Includes all necessary mounting hardware.
Height:
6-5/16"
California Residents:
WARNING: This product can expose you to chemicals including lead and/or wood dust, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Installation / Specification Documents

Specifications Product Brochure
